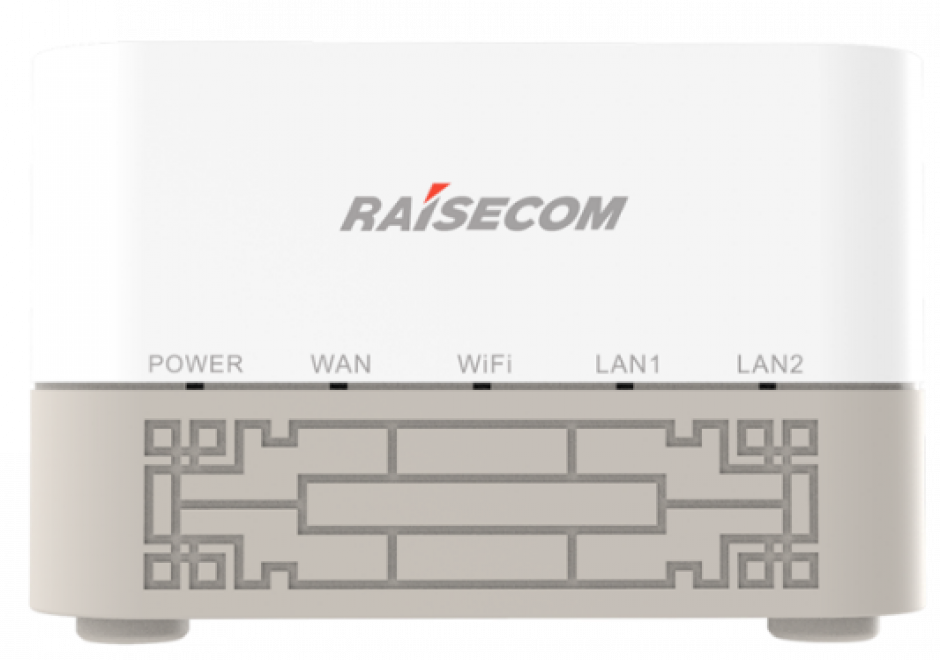

Elegant Appearance
• Be suitable for desktop layout; support built-in antennas on DR5254 and external antennas on DR5264 appearances
High-speed full-gigabit networks
• Upgrade the bandwidth just in one step; adopt full-Gigabit network port design, 1 Gigabit WAN port, and 2 Gigabit LAN ports.
• Max. 1167Mbps for Wi-Fi 5 router and Max. 1775Mbps for Wi-Fi 6 router
High-performance antenna
• 4 high-performance antennas to achieve the omni-directional family coverage
• 2.4GHz with strong wall penetration and wide coverage, while 5GHz with low latency and high rate
WAN/LAN auto-adaption
• With the support of the network port automatic identify technology, you can plug in the 3 Gigabit ethernet ports as you like, and there will be auto-recognized uplink/downlink port no error
IPv6
• All-round upgrade to support IPv6 (compatible with IPv4), more addresses, more secure
Band-steering
• Combined 2.4GHz and 5GHz to one SSID, intelligent automatically connects users’ devices to faster frequency
Easy Setup
• Easy setup in 3 steps with Smart Phone, easy to use
P/N | DR5254 | DR5264 |
WAN Interface | 1 x Gigabit WAN port | |
LAN Interface | 2 x Gigabit LAN ports | |
CPU | Dual-core 900MHz | |
RAM | 128 MB | 256 MB |
Flash | 128 MB | |
WLAN | 802.11 b/g/n/ac, AC1200, 2.4 GHz & 5 GHz, 2 x 2 MU-MIMO, 8 SSIDs, 4 x built-in 3dBi Antennas | 802.11 b/g/n/ac/ax, AX1800, 2.4 GHz & 5 GHz, 2 x 2 MU-MIMO, 8 SSIDs, 4 x external 5dBi Antennas |
Dimension(mm) | 105(L) × 105(W) × 68(H) | 220(L) × 130(W) × 36(H) |
Power Supply | 12V DC, 1A | 12V DC, 1.5A |
Software | Support PPPoE, DHCP Server/Client, static IP, WPS, IPv4/IPv6, DNS client/relay, NAT, Firewall, parent control, Accept/Reject list, DMZ, IGMP snooping/proxy | |
Management | Web management, APP, OTA |
